Conventional Fire Alarm System
PRODUCTS
2 Zone/4 Zone Panel
4 Zone /8 Zone Panel
12 Zone upto 128 Zone Panel
4 Zone With 2 Agent Relese Panel
.png)
2 Zone With one Agent Relese Panel
Repeater Panels

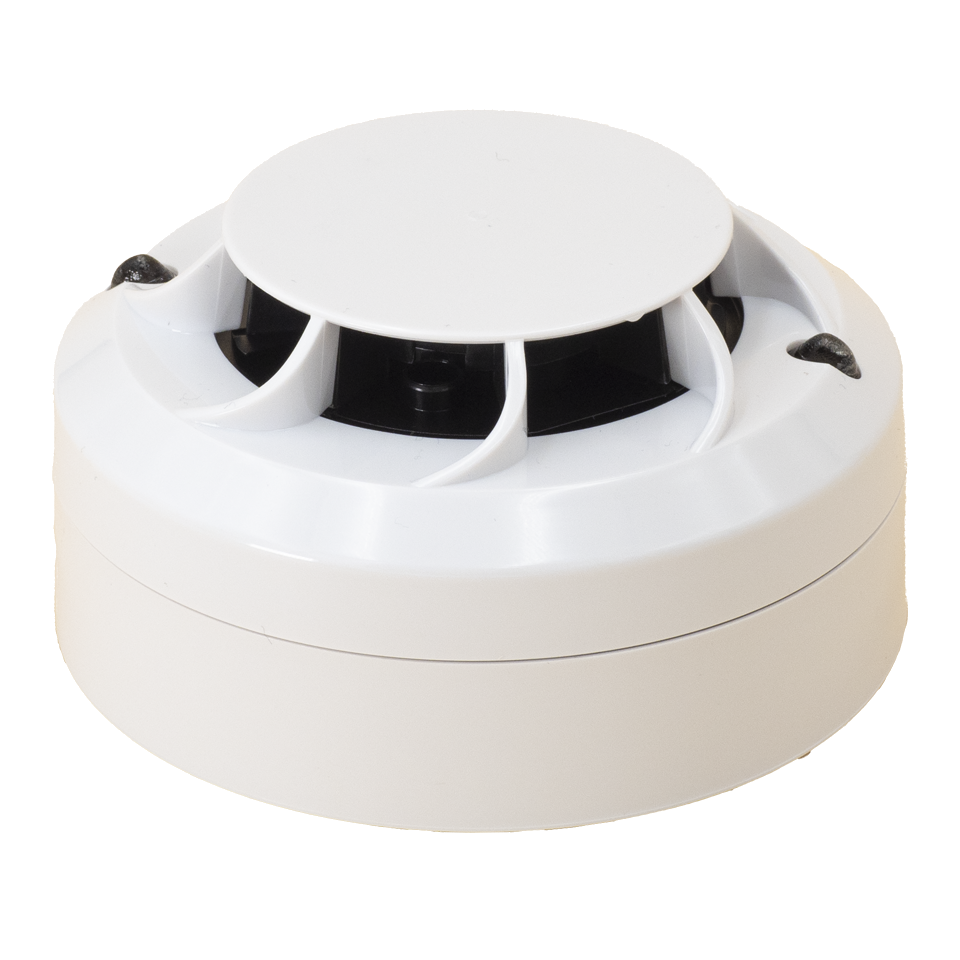

Conventional Detectors
Special Application Gas Detectors
Optical Beam Detector

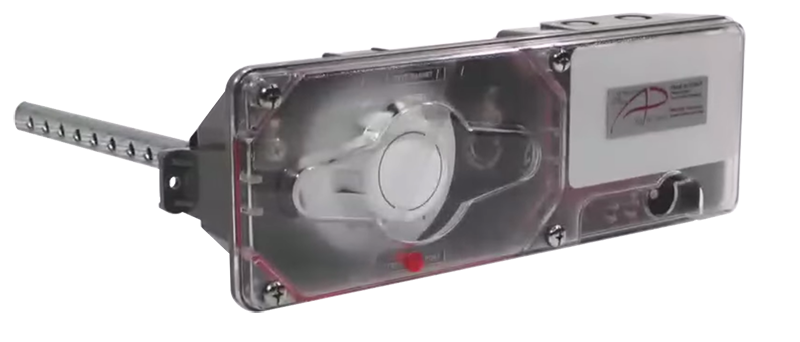

Duct Smoke Detector
Manual Call Point
Manual Pull Station
Sounder Cum Flasher
Sounder
Centralized Monitoring Software
Response Indicator
PA Main Console
Fire Telephone Console
- UL Certified & NFPA-72 complies.
- Auto Resettable Fuse and surge Protection.
- Battery polarity reversible protection.
- 2 Class B Notification Appliance Circuits (NAC).
- Supervisory Zone shall be Latching or Resettable. RE-2554 / RE-25.
- Resettable / Steady 24V D.C. Output.
- Earth fault annunciation facility at 0 ohms.
- Complies with UL -864 and NFPA-72.
- 20 x 4 Dot Matrix LCD Display.
- Touch Keypad for user friendly operation.
- 1000 Event storage with RTC.
- Peer to Peer network facility through RS 485.
- Maximum 16 panels can be connect in a Single Network.
- TCP/IP module and PC software (optional).
- MODBUS for BMS integrated (optional).
- External Zone Wise Sounder/Contact via RS 485 (Optional).
- Facility to connect Public Address System (PA) through RS 485 Communication.
- Zones available: 12, 16, 20, 24, 32, 48, 64,96 & 128 Zones.
- UL Certified & NFPA -72 complies.
- 4 Class B initiating device circuit (IDC).
- 2 Class B Releasing Agent Circuits (RAC).
- Two modes of operations Auto / Manual.
- Programmable 24v DC Outputs.
- 200 Events history log with RTC.
- Special-logic circuitry to prevent accident release.
- Earth fault annunciation facility.
- Programmable RAC's with count down timer.
- Programmable AC loss delay/Trouble Remainder.
- 3 Form C programmable relays for Fire / fault / supervisory / Pre-Release / Gas Released.
- Operates on 220VAC supply.
- Evacuate and Keypad Enable, Disable Facility.
- Gas Inhibit and Instant release facility.
- Manual Gas Release with or without timer.
- Actuator pressure low sensing facility.
- Programmable Solenoid Output with ON and Off Timer.
- Programmable Main / Standby Cylinder output facility.
- 3 Sounder Output 24v (Fireuiter Cross Roller gas release).
- 4-wire system operation.
- 70 dB internal sounder.
- Internal reed switch for hush and test functions.
- Stable gas sensing chamber. No adjustment or replacement required.
- Detector auto-reset once gas levels fall below alarm threshold levels.
- RE 386NG-Natural Gas (Methane) Detector / RE-386CO-Carbon Monoxide (CO) Gas Detector / RE-386LP-Propane Gas (LPG) Detector
- In built laser light for accurate & easy alignment.
- 50 and 100 meters range.
- Sensitivity Threshold :- 18%,30% & 50%.
- Infrared transmitter & receiver located in a single housing.
- In built drift compensation for monitoring dirt build up on the optical system.
- RE-428HR - 100M / RE-428FR - 50M Range
- Single loop non expandable system.
- 32 bit Microprocessor - Arm cortex.
- Device / Detector wise configuration facility.
- 2000 Event storage with RTC.
- USB 2.0 Interface for PC connectivity.
- RS 485 Connectivity for repeater.
- Maximum 147 Devices (127 detectors & Modules, 20 loops power sounders or loop power sounder base).
- Complies with EN 54 standards & CE certified.li>
- Dual LED's for 360° visibility.
- Soft address programming for Easy installation.
- Advance detection and communication protocol.
- Availability : Multi/ Smoke / Heat ( ROR - Fixed )
- Sleek low profile housing design.

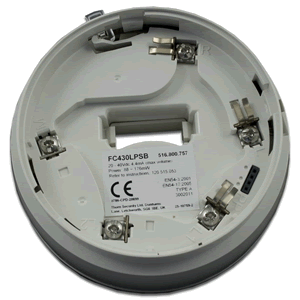

- Regular 100mm base.
- 19", 3U Rack, mountable.
- Zone expansion in Multiple of 16.
- Inbuilt amplifier Max. 125/250W can accommodate in a console.
- Additional Amplifier can expand up to 250W.
- Zone wise (Speaker line ) Selection facility with LED indication.
- All loud speaker lines are supervised.
- Voice / Alarm / All call / Mic / Music / DVD selection facility.
- 8 Zone with full duplex system.
- Conference call facility.
- Telephone Jack monitoring facility.
- A call tone is provided for the remote phone call.
- Telephone circuit supervised with 4.7 K 0.
- Max. 64 jack can be provided tha zone.
- 2 way telephone circuits or supervised and power limited.
